For hammers with non-zero bore angles, a hammer square only works when it is used with a platform that is normal (perpendicular in both dimensions) to the hammer axis! We offer a series of 2-axis smart digital levels so that you can quickly and easily set up either the SFV (squaring/filing/voicing) block or the squaring platform. Our digital protocol is included. This model is our high end recommendation for hammer squaring work. It is 10x more accurate than the Wixey angle gauge for leveling and can measure 2 dimensions at once. It measures at peak accuracy through a larger range of angles relative to the DWL90Pro and DWL1300XY models. It is also useful for comparing the string planes to the keybed when custom boring hammers.

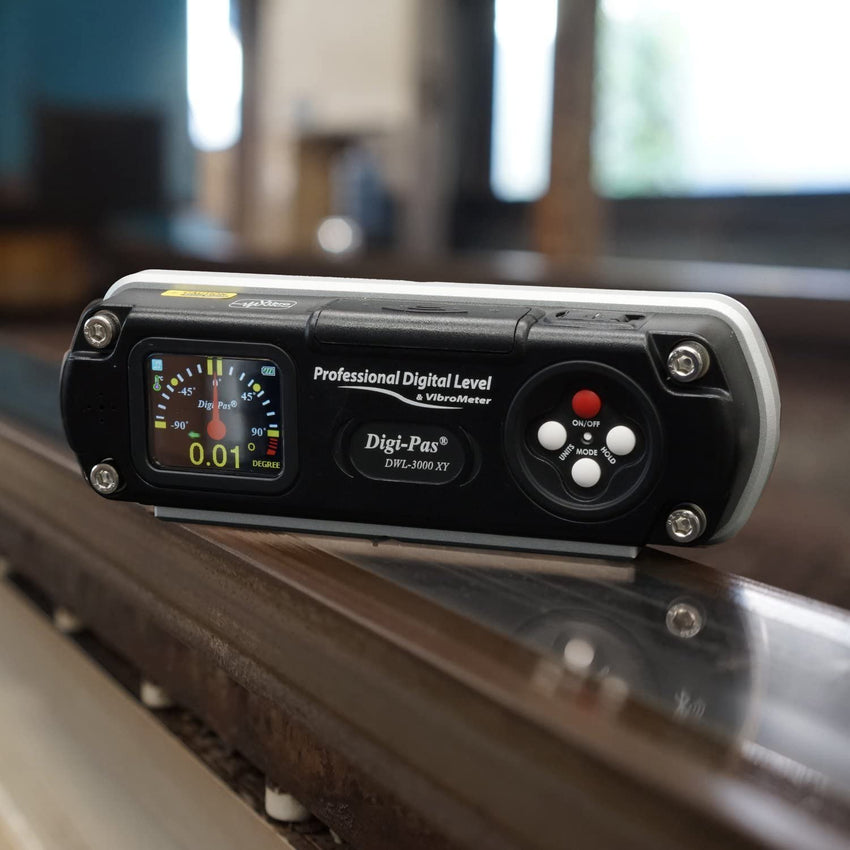

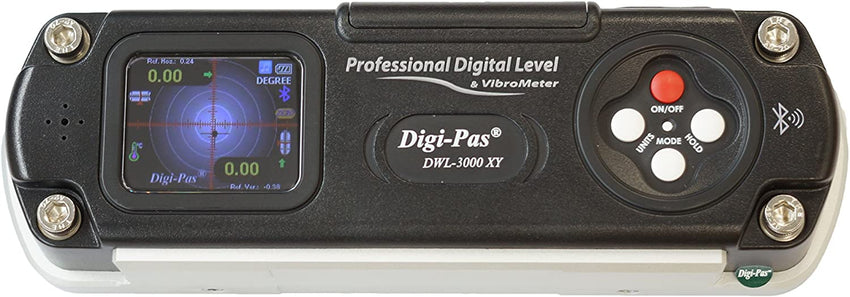

Digi-Pas DWL3000XY 2-Axis Digital Machinist Level & Inclinometer, BLUETOOTH, 0.002"/ft (0.2 mm/M), 6 inch, (NIST-Traceable Compliant*)

Digi-Pas DWL3000XY & DWL3500XY are PREMIUM MID-PRECISION 2-Axis Digital Level with built-in Vibrometer for levelling, angle, alignment & vibration measurements, and performing real-time DATA ACQUISITION & DATA LOGGING with USB or WIRELESS Bluetooth connections. Acquired data can be saved into Microsoft Excel format for further analysis.

ADVANCED functional features are created to greatly simplifying the task for professionals & tradesmen in installation, set up and maintenance of precision machines, test/measuring instruments. It is a LEVELING & ANGULAR ALIGNMENT DIAGNOSTIC instrument used by many R&D engineers and scientists when performing alignment-sensitive equipment or machine to evaluate its STRUCTURAL STABILITY during steady state or running state in real-time (dynamic state).

Digi-Pas 2-axis Precision Digital Level is highly precise. ACCURACY performance to specification has been verified by accredited 3rd party calibration laboratories & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025.2005, traceable to NIST, JIS & DIN.

Specifications

1. Measuring range from 0° ~ ±90° (SINGLE-Axis); 0° ~ ±15° (DUAL-Axis)
2. Resolution of 0.01° (0.175 mm/M) (0.002 in/Ft.)
3. Accuracy: ± 0.01° at 0° to ±10.00°; ± 0.03° at other angles
4. Digital colour graphic display of dual angles
5. Enable USB External power source

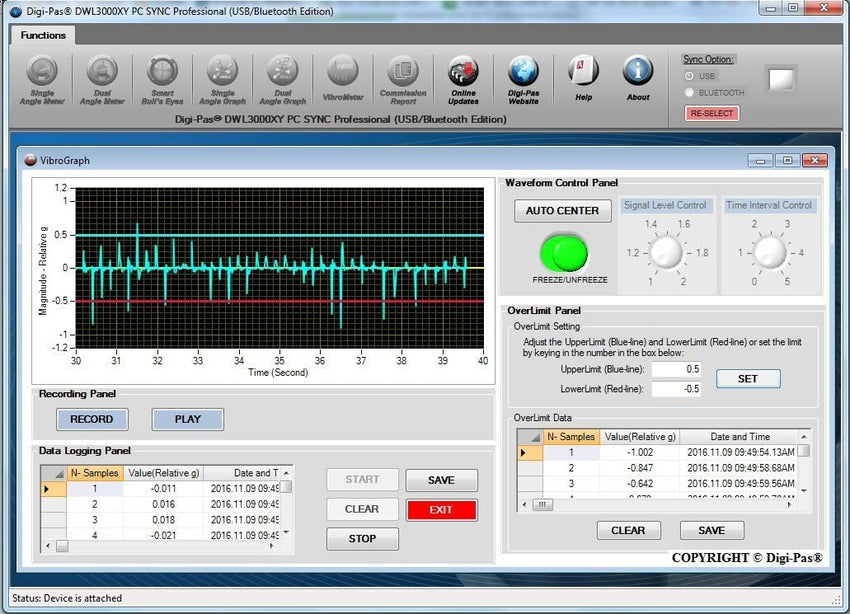

6. Vibrometer display real time vibration graph

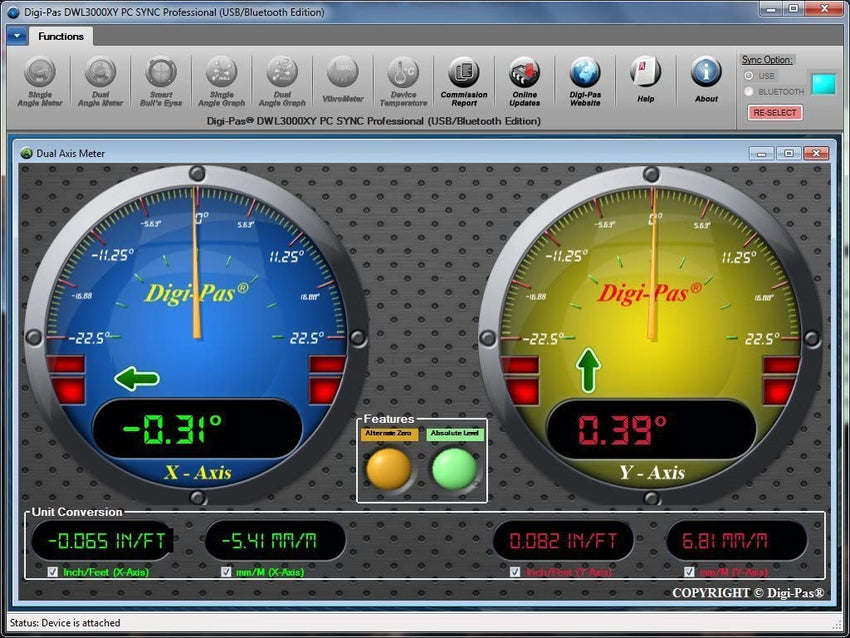

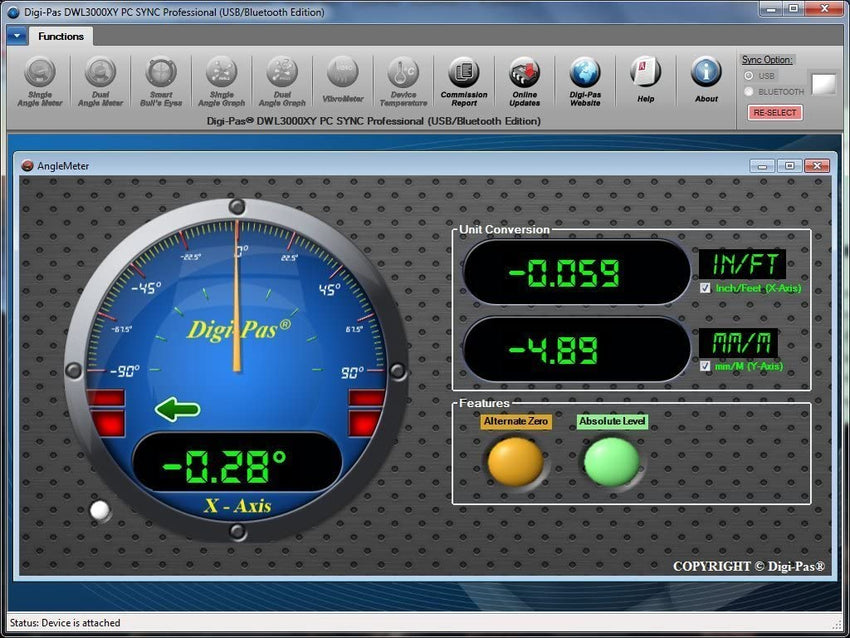

7. Basic PC Sync Software USB connection (5 Meters) to device for remote data display

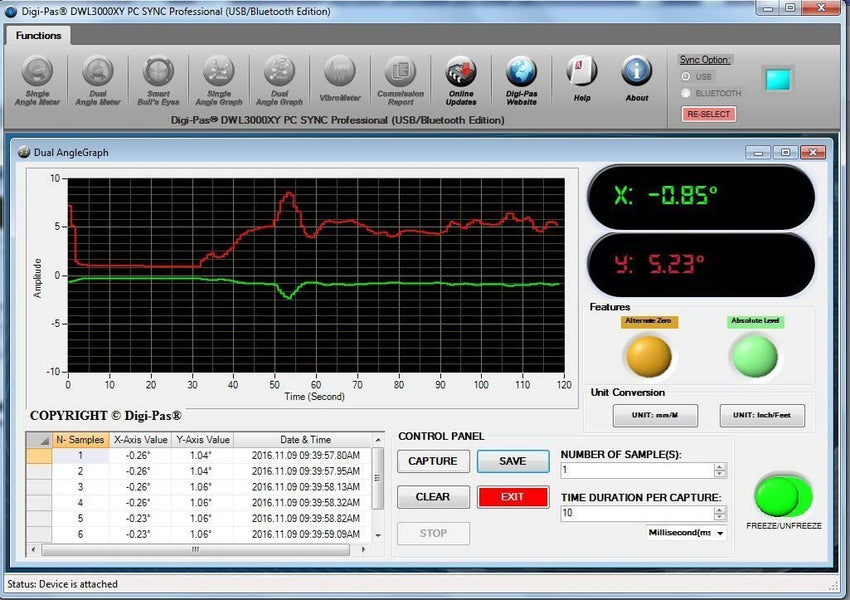

8. Professional PC Sync Software USB connection to device for remote data logging (Optional - Sold Separately).
9. Wireless Bluetooth class 1 connection (approx. 30 Meters) from PC to device (optional)
10. Operating temperature at -10°C to +50°C

Features

1. Digi-Pas 2-AXIS WIRELESS Machinist Level replaces Old-fashioned Spirit Vial Levels. Tedious repetition of checking 'bubble' position between tiny graduation lines is NOW THINGS OF THE PAST
2. WIRELESS pairs to Smartphones/PC (Basic PC software is FREE), INSTANTLY read both X&Y leveling status (Digital & Graphic Animation) on your PC/phone while SIMULTANEOUSLY adjusting machine’s footings
3. RESOLUTION: 0.002”/ft or 40-second (0.18 mm/M or 0.01°). Measurement range: 0° to ± 90.00°1-Axis; 0° to ± 10.00°2-Axis; Accuracy: ±0.002”/ft (± 0.01°) from 0° to ± 10.00°; ± 0.03° at other angles
4. OPTIONAL Professional Software (DWL3000XY-SW) for FULL FEATURES on data display & logging saved in Excel format for further analysis. Built-in vibro-meter to detect relative vibration magnitude. DWL3000XY PC Sync Pro Software is SOLD Separately.
5. ACCURACY of Digi-Pas digital level has been certified by accredited Calibration & Test Laboratories traceable to NIST, JIS & DIN. This item includes a manufacturer's Calibration Certificate. Users who needs a NIST-traceable Calibration Certificate with data, Pls contact our sales team.

Links

1. Brochure:  https://www.digipas.com/documents/2axis-precision-digital-level-brochure-en.pdf
2. Manual:  https://www.digipas.com/documents/dwl-3000xy-manual.pdf
3. Introductory video:  https://youtu.be/Nx6Ax1qYs5c
4. Calibration video:  https://youtu.be/S61X2_CmjlU?list=UUltRpPOFtUZfvrS_x2b6R9w
