2-Axis Smart Machinist Digital Level

For hammers with non-zero bore angles, a hammer square only works when it is used with a platform that is normal (perpendicular in both dimensions) to the hammer axis! We offer a series of 2-axis smart digital levels so that you can quickly and easily set up either the SFV (squaring/filing/voicing) block or the squaring platform. Our digital protocol is included. This model is our recommendation for hammer squaring work. It is 5x more accurate than the Wixey angle gauge, measures 2 dimensions at once, and is still affordable. It is also useful for comparing the string planes to the keybed when custom boring hammers.

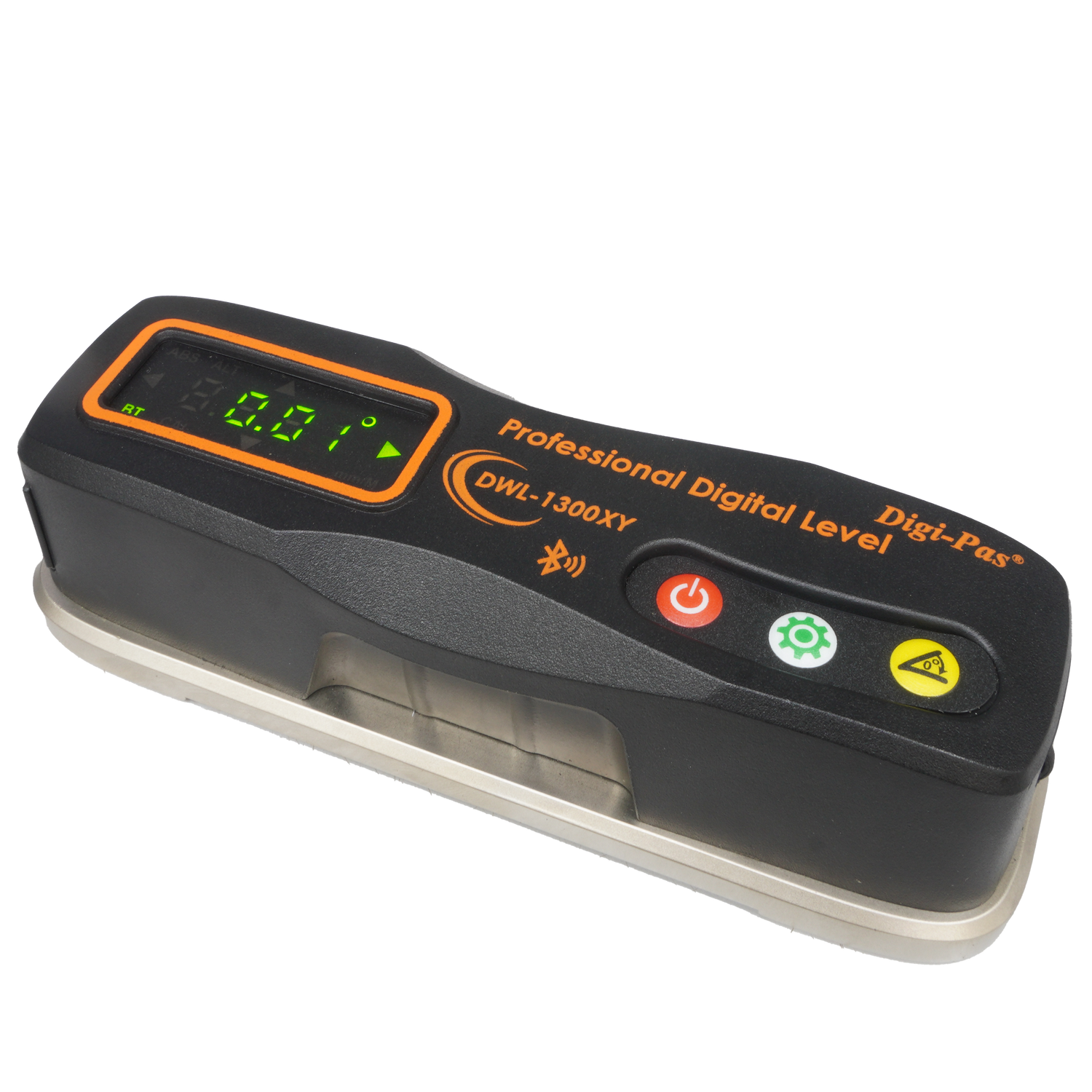

Digi-Pas DWL1300XY 2-Axis Smart Machinist Digital Level, BLUETOOTH, 0.002"/ft (0.2mm/M), (NIST-Traceable Compliant*)

Digi-Pas DWL1300XY is an AFFORDABLE yet HIGH-PERFORMANCE 2-Axis, Wireless Bluetooth Smart Machinist Level, Digital Inclinometer designed for industrial users & professionals. SIMULTANEOUSLY reads both X & Y axis leveling status wirelessly (One App included to redeem) with smartphones/tablets while adjusting footings of precision machines & equipment. CUTDOWN installation, setup & maintenance TIME by HALF, enable ONE-MAN OPERATION and improve QUALITY.

Digi-Pas 2-axis Precision Digital Level is highly precise. ACCURACY performance to specification has been verified by accredited 3rd party calibration laboratories & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN. To purchase an unit accompanied with NIST-traceable calibration certificate with data, please visit www.digipas.com. This level come with 1-year mfr's free repair or exchange.

Specifications

1. Measuring range: 1.0” or 0.00° ~ ±5.00° (DUAL-Axis)
2. Resolution: 0.002”/ft or 40-second (0.18 mm/M or 0.01°)
3. Accuracy: ±0.004”/ft or 80-second (± 0.02°) from 0° to ±0.5° and 0.04° at other angles
4. User may use device without or with Bluetooth® Measurement when paired with smartphone & Digi-Pas Smart level App
5. Bluetooth range: approx. 50ft.
6. Operating temperature at 10°F to 120°F. or -10°C to +50°C
7. ACCURACY of Digi-Pas digital level is verified by accredited 3rd Party Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN.


Key Features

1. PATENTED Digi-Pas 2-AXIS Machinist Level replaces 2 pieces of Old-fashioned Spirit Vial Level in one go. Tedious repetition on going ‘back-and-forth’ checking 'bubble' position in-between tiny graduation lines is NOW THINGS OF THE PAST. This task is replaced by WIRELESSLY looking on your smartphone screen "live" leveling status while adjusting your equipment for leveling. It enables ONE-MAN OPERATION to align a machine instead conventionally done by TWO MEN.

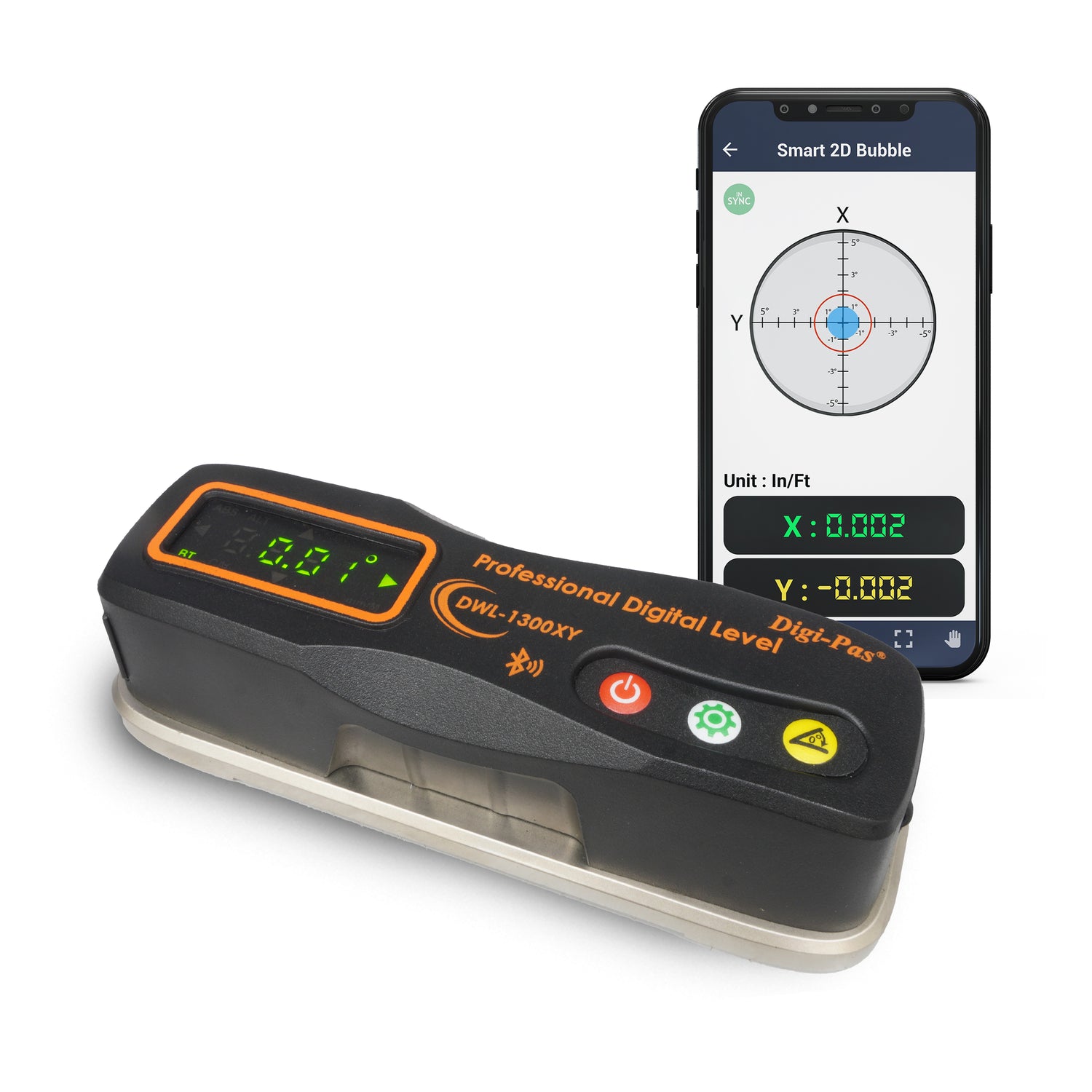

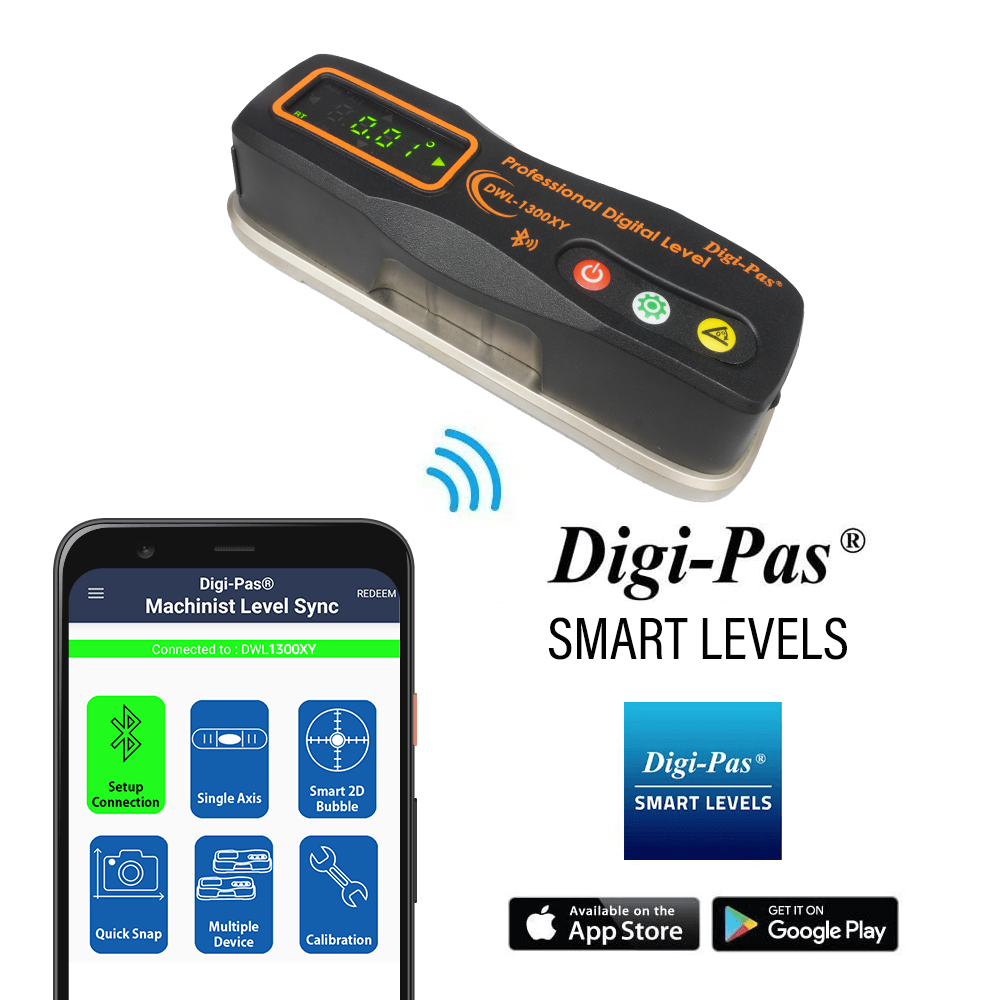

2. WIRELESS pairs to Smartphones/Tablets (One FREE App Incl. for Apple/Android), instantly read both X&Y axis level status (Digital & Graphic Animation) on your phone while SIMULTANEOUSLY adjusting machine’s footings over bluetooth range. Rugged design with high impact resistant withstanding rough handling. MULTIPLE users SHARING one or more smart level(s), additional paid app can be separately downloaded from Apple/Google App stores.
3. Greatly CUTDOWN machine alignment TIME (by over 70%) and combine with one-man operability allow GREAT COST SAVING and improve alignment QUALITY for Installation, Setup & Maintenance of precision machine alignments in a SMART way.
4. RESOLUTION: 0. 002”/ft” or 40-second (0. 18 mm/M or 0. 01°). Measurement range: 1. 0” or 0° to 5. 00° Accuracy: 0. 004”/ft or 80-second ( 0. 02°) from 0° to 1. 00°. Operating temp. range: 10° to 120°F. Bluetooth range: approx. 50ft.
5. ACCURACY of Digi-Pas digital level is verified by accredited Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN. This item includes a manufacturer's Calibration Certificate with data. Users who needs a NIST-traceable Calibration Certificate with data, Pls contact our sales team.


Links

1. Brochure:  https://www.digipas.com/documents/1300_1500_brochure.pdf
2. Manual:  https://www.digipas.com/documents/JQC-2-01X01-99-002.pdf?rev=1
3. Introductory video:  https://youtu.be/Ped2G40xcUM
4. Calibration video:  https://www.youtube.com/embed/3Me8C0YhnAs
