Grandwork

Squaring Platform

$ 875.00
  • Squaring Platform

Grandwork

Squaring Platform

$ 875.00
$ 875.00

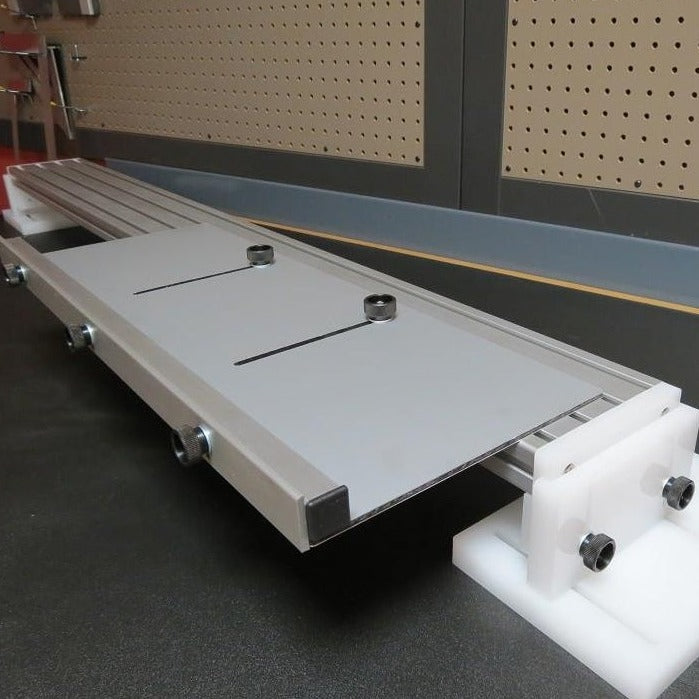

The Squaring Platform presents a flat surface parallel to the horizontal plane of a grand action. Raise the height of the platform so that its sliding top will extend over the backchecks with the keys at rest. Then, fine-tune each corner to the same height using the Depth/Angel Gauge (provided with a Regulation Station). Sliding top contracted, use a Shank Traveler from its surface to travel shanks vertically. Then, sliding top extended, support shanks on the support rail to square hammers at strike with a Hammer Square

the regulating rack

Letoff racks provide letoff for a section. Regulating Racks provide the entire strike profile and change its height as needed for the whole action.

Applying The System

The Setup and Order of Operations guides you step by step and the Laminated Protocols let you tick off steps as you go, so you don't get out of order or leave something out.

Well-lit work

The Regulating Rack's rail has LEDs that illuminate both templates and action. The Hammer Hanging Jig has its own LEDa, too. And Lighting Rails come in four sizes to shine light wherever you need it.
